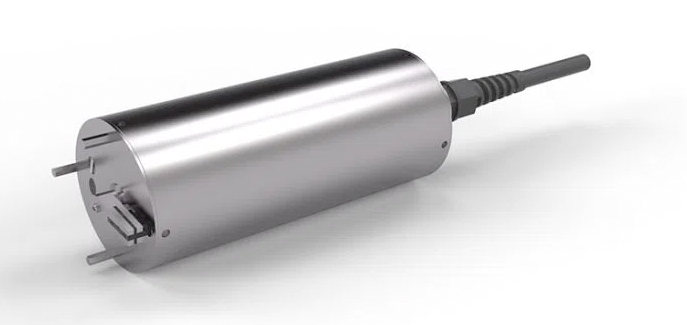

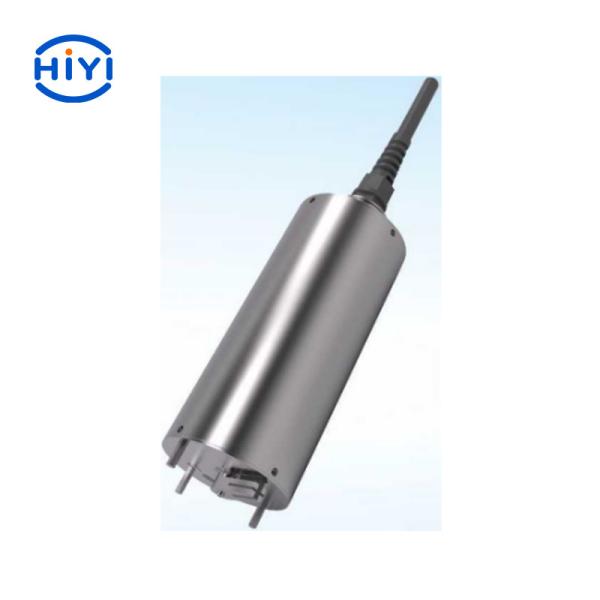

LH-DX01 Water Quality Electrode Series 516 Stainless Steel

  • 1
  • 2
  • 3

Brand Name : HiYi

Model Number : LH-DX01

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 15 work days

Packaging Details : paper case

Analog interface : 4-20mA

Power supply : 12VDC±20%, 1A

Size : 54x150mm

Flow cell (optional) : 350x117x198mm

cable length : 5m (default)

material : 516 Stainless Steel

Contact Now

LH-DX01 Online Water Quality Suspended Solids Electrode Online Water Quality Monitoring Series 516 Stainless Steel

OVERVIEW

This product uses the turbidity method to measure the concentration of suspended solids. The LED emits a near-infrared beam to the sample at a certain angle. The beam will scatter when it encounters suspended solids in the sample during transmission. It is set at a 90° angle to the incident light. The detector receives the scattered light, and the concentration of suspended solids in the sample is proportional to the scattered light intensity, so that the suspended solids concentration in the sample can be calculated by measuring the scattered light intensity.

FEATURES & BENEFITS

• Can be used for low concentration detection (<1mg/L, with flow cell).

• Self-contained wiper with automatic cleaning function.

• Built-in temperature sensor.

• Corrosion-resistant housing, IP68, can work underwater for a long time.

• Support MODBUS/RS485/4-20mA current interface output.

• Wide test range (0〜3000mg/L).

APPLICATION

LH-DX01 Water Quality Electrode Series 516 Stainless Steel

SPECIFICATIONS

Item LH-DX01-200 LH-DX01-1000 LH-DX01-3000
Measuring range (mg/L) 0-200 0-1000 0 ~ 5000
Resolution (mg/L) 0.01. 1 0.1,1 0.1,1
Accuracy (mg/L) W±0.3mg/LorW±6% W±0.5mg/Lo「W±8% W±0.5mg/LorW±8%
Working temperature 5 〜40°C
Maximum diving depth 5 meters underwater
Digital interface MODBUS /RS485
Analog interface 4-20mA
Power supply 12VDC±20%, 1A
Calibration One or two point calibration
Size 54x150mm
IP grade IP68
Installation method Flow cell installation, immersion installation
Flow cell (optional) 350x117x198mm
cable length 5m (default)
material 516 Stainless Steel

LH-DX01 Water Quality Electrode Series 516 Stainless Steel
